Willach belongs to the leading pro-ducers of glass fittings
in Europe.
The manufacture of products to the highest quality and precision
stan-dards has been the supreme dictum of the company since its
establish-ment in 1889. Numerous technical innovations and telligent
solutions with attention to detail meant that Willach was able to
build up its pioneering reputation at an early stage. With the
Vitris product line, Willach today offers a comprehen-sive
system of high quality glass door fittings, sliding door locks and
slot bar systems for discerning in-terior, shop and trade show
furnish-ings.
V i t r i s - G l
a s s f i t t i n g s w i t h l o g i c

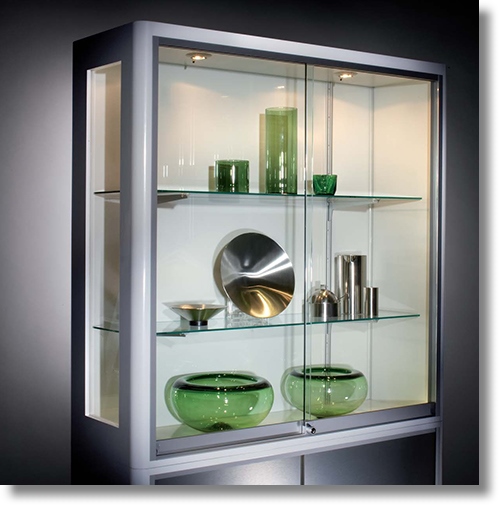

Vitris the system
Vitris is the solution
for all situat-ions in which glass requires the perfect frame. It is
a complete range consisting of profiles, fittings and locks for
interior, showcase, shop or trade show furnishings. All system
components are precisely coordinated and allow for many different
combinations to take account of the greatest variety of dimensions
and glass thicknesses.
Innovative solutions with regard to details such as the screwless
roller assembly or the integrated damping device are unique. Vitris
is the modular fittings system to meet the most demanding
requirements as regards long-lasting function, aesthetic design,
high security and trouble-free assembly.
|
Modular system |
|
Glass
thicknesses from 4 to 12 mm |
Lock, adapter and finger
pull handle |
 |
 |
|
The modular
principle is consistently applied throughout the whole of
the Vitris range: fittings can be used universally for a
variety of glass thicknesses from 4 to 12 mm. |
The size and look
of locks, adapters and finger pull handles have been
coordinated with the profiles and other fittings components,
thus producing a convincing and complete solution. |
|
Long-lasting function |
|
Roller
assembly technology |
Non-wearing flocking |
 |
 |
|
Roller technology
Vitris roller assembly in a single-unit spring steel housing
for precise centring, self-alignment in the housing and
extremely quiet running action. |
Non-wearing
flocking The high quality flocking, applied by machine,
guarantees a high degree of wear resistance and a
long-lasting quiet running action. |
|
High
level of security |
|
3-point
security |
Security dead bolt
mechanism |
 |
 |
|
The 3-point
security for showcases (Secura lock • damping/anti-theft
device • top twin-guide) prevents vertical lifting and
horizontal pushing apart of the sashes. |
The patented dead
bolt mecha-nism prevents the sliding door sections from
being pushed apart.
|
|
Simple assembly |
|
Vitris
mounting tool for roller assembly |
Fast assembly |
 |
 |
|
The Vitris
mounting tool for roller assembly enables instant and clean
assembly without the need for screws. |
The Allen key
allows a fast and simple assembly of locks, adapters and
handles. |
↑up

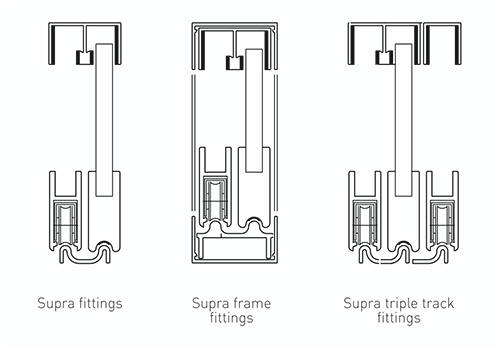

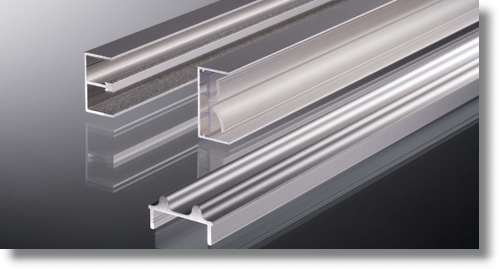

Virtis supra
Supra is a universally usable
sliding fittings system for glass thick-nesses of 4, 5, 6 and 8 mm.
The high quality flocking of the top twin-guides, the superior
roller techno-logy, the secure combination of glass and metal
through trans-parent plastic bedding profiles as well as the
invisibly integrated damping and anti-theft devices provide for the
perfect, long-lasting, easy and quiet functioning of the glass
sliding doors. Endurance tests undertaken by Willach demonstrate the
superiority of this roller techno-logy in comparison to conventional
rollers: even after 40,000 sash movements there was no recognis-able
or noticeable wear.
↑up

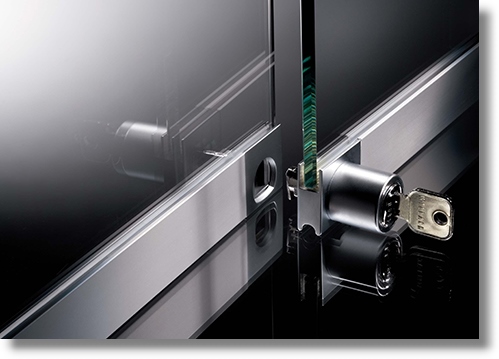

Virtis secura
Secura is a high security
cylinder lock for glass sliding doors. Its patented design provides
maximum security and protection against manipulation: no horizontal
pushing apart, no pushing out and no lifting of the sashes anymore.
Its modular system consists of a high security cylinder lock in the
front sash, an adapter in the rear sash and an interchangeable
cylinder core which can be either supplied to pass or to differ. Its
assembly is as fast as it is simple. Lock and adapter have been
coordinated with the runner profile in design and surface
specification. When combined with the Vitris profiles, aesthetically
discerning complete solutions for interior furnishings can be
realised.
 |
 |
|
The dimensions and
design of the finger pull handle, adapter and lock are
coordinated with the Vitris runner profile and make for an
aesthetically pleasing overall appearance. |
 |
 |
The Secura security
cylinder glass door lock at an ergonomic height provides
for the greatest security and prevents the glass doors from
being pushed apart half-way up
the sash. |
|
Non-manipulable design
The special design with a knurled surface prevents the
lock-housing from being twisted on the sash. |
 |
 |
The universally usable
cylinder core is suitable for all Secura lock type and
can be supplied either to pass or to differ. The cylinder
core can be easily substituted with the dismantling key. |
|
Security dead bolt
mechanism With the patented Secura dead bolts mechanism,
an L-cam in the front sash interlocks with the adapter of
the rear sash, thus preventing the sashes from being pushed
apart horizontally. |
 |
↑up

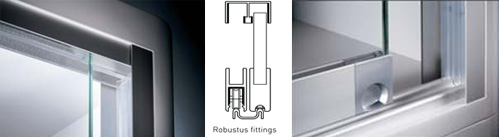

Virtis robustus
Robustus is a fittings system for
glass thicknesses from 8 to 12 mm. It can be used in a range between
70 kg (2 rollers) and 140 kg (4 rol-lers) and is therefore also
suitable for security glass. The option of a lateral frame profile
section with damper profile protects the glass at the edges and
stops dust. Adjustable end position damping devices stop the glass
from striking the lateral frame and at the same time prevent it from
being lifted off. All the other quality characteristics correspond
to those of the Supra range.
↑up |
